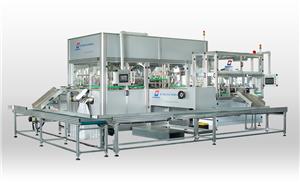

High Speed Full-Servo Adult Diapers Packaging Machine
The machine, under automated operation, will have the diapers stacked neatly by the Stacker according to diapers quantity/ piece number of the packaging followed by pushing into the compressing platform of the Packaging Machine. When products being detected by the Packaging Machine, it will undergo procedures such as: automatic compression, stacked-products/pieces pushing, bag feeding, suction, bag-opening, product bagging.
Mechanical Features:
1. Patented gusset-making mechanism
has been approved by the industry able to reduce misalignment and error to minimum level created by high stability gusset-making mechanisms.
2. Multi-Servo drive and high mechanical stability.
The adoption of Mitsubishi or AB motion-controlled PLC and Bus Servo System ensures the stability and efficiency of production, with the qualified rate reaching as high as 99%.
3. Overall program planning.
When the machine is in the process of changing task or in a malfunctioning state, it can one-click switch to output adult diapers from another outlet of the stacker , products will be diverted through manual sealing line to ensure the continuous work of the main machine.
4. Temperature control system from Germany.
The adoption of German temperature control system enables the preciseness of temperature setting for heating strips by touching on the screen, with tolerance of ±1 degree Celsius.
Picture Preview:
Technical Parameters:
Production Rate | 50 packs/min |
Applicable Packaging Specifications: | width:120~400(customizable) height: 90~250(customizable) length:150~500(customizable) |
Texture of Bags: | Suitable For Manual Sealing & Applicable to Nonwoven Materials |
Electrical System: | Motion controlled system, touch screen,servo drive (11axles) |
Installed Power: | 25 KW |
Power Requirement: | 380V/50HZ 10㎜²5-core power cord |
Air Pressure Requirement: | 0.5Mpa |
Machine Weight | 2000Kg |
Machine Dimension (length×width×height) | 3550×3500×2540 |
