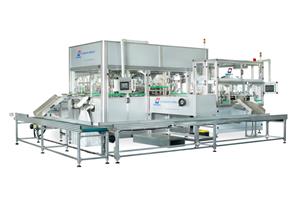

High Speed Fully-Automatic Baby Diapers Packaging Machine
The High Speed Fully-Automatic Packaging Machine (with auto. size-changing function) adopted dual compression stages for the stacked diapers of baby pants before entering the packaging to be sealed. Under full-auto. operation, the machine will be able to carry out product catching, compression, piece counting, stack pushing, bag opening and bag filling procedures followed by trim clearing. These sealed packaged products would be delivered out along the conveyor belt.
Mechanical Features
1. Exclusive patented Innovative gusset-folding technique
With the accuracy to ensure the shaping up of smooth and delicate gusset, the servo controlled gusset-making mechanism is adaptable to various pet underpads packaging specifications.
2. Incoporated with auto. size-changing functional system
Integrated with decades of packaging design & mechanical comissioning experiences with knowledges that we have acquired into developing this innovative packing machine. By just entering the bag width into the system, the machine can automatically calculate and carry out the auto. size-changing task completely.
3. New modular design concept
Full servo design & multi-cam servo technology adopted ensuring highest flexibility & shortest time to be taken, reaching the packing speed of 50 packs/min by far the highest speed of the industry.
4. Human-machine interaction system.
Various product parameters can be preserved and saved in the machine, and retrieved easily when needed.
Video Preview:
Picture Preview:
Technical Parameters:
Production Rate | 50 packs/min |
Applicable Packaging Specifications: | width:120~400(customizable) height: 90~190(customizable) length:150~500(customizable) |
Texture of Bags: | Suitable For Manual Sealing & Applicable to Nonwoven Materials |
Electrical System: | Motion controlled system, touch screen,servo drive (18axles) |
Installed Power: | 30.5 kw |
Power Requirement: | 380V/50HZ 10㎜²5-core power cord |
Air Pressure Requirement: | 0.5-0.65 Mpa |
Machine Weight: | 4000 Kg |
Machine Dimension (length×width×height) | 3750×3850×2450 |
