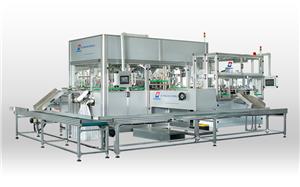

Full-auto High Speed Baby Pants Packaging Machine
The machine, under automated operation, will have the baby pants stacked neatly by the Stacker according to pants quantity/ piece number of the packaging followed by pushing into the compressing platform of the Packaging Machine. When products being detected by the Packaging Machine, it will undergo procedures such as: automatic compression, stacked-products/pieces pushing, bag feeding, suction, bag-opening, product bagging.
Mechanical Features:
1. Exclusive gusset-making mechanism creating distinctive feature of packaging solution
Has been approved by the industry able to reduce misalignment and error to minimum level created by high stability patented gusset-making mechanisms .
2. Full-servo system
With utilizing full servo control technology, as compared to traditional mechanical controlling methods, it consumes lower energy with more stable control and accurate positioning
3. Extensive applicability, with fine and firm sealing.
The machine is applicable to packing over 95% of the mainstream products in this line, including diapers, elastic diaper pants, pet cushions and mattresses etc.,with the sealing fine and firm.
4. Shortest packaging length requirement
Unique production technology adopted with short packaging length requirement to reduce the cost by large margin. The shortest edge length can be controlled at 10mm when the gusset under stable operation.
Picture Preview:
Video Preview:
Technical Parameters:
Production Rate | 50 packs/min |
Applicable Packaging Specifications: | width:120~400(customizable) height: 90~250(customizable) length:150~500(customizable) |
Texture of Bags: | Suitable For Manual Sealing & Applicable to Nonwoven Materials |
Electrical System: | Motion controlled system, touch screen,servo drive (11axles) |
Installed Power: | 25 KW |
Power Requirement: | 380V/50HZ 10㎜²5-core power cord |
Air Pressure Requirement: | 0.5Mpa |
Machine Weight | 2000Kg |
Machine Dimension (length×width×height) | 3550×3500×2540 |
