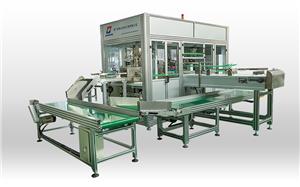

Mid-Speed Semi-Auto Baby Diapers Packaging Machine
A packaging machine mainly for packing diapers & baby pants products with mid-speed & semi-automatic main features. When products being detected by the Packaging Machine, it will undergo procedures such as: automatic compression, stacked-products/pieces pushing, suction and the final stage of bottom gusset folding, heat-sealing and waste clearance procedures.
Mechanical Features:
1. Economical packaging solution
2. Innovative gusset-folding technology with exclusive patent right.
With the accuracy to ensure the shaping up of smooth and delicate gusset, the servo controlled angular device is adaptable to various baby diapers packaging specifications.
3. Able to undergo fully-automatic upgrading and integration
Easily integrates with Stacking Machine for semi- to fully-automatic bagging.
4. One-press shunt function
When the machine is in the process of changing task or in a state of malfunction, the products will be diverted through manual sealing line with the one-press shunt system to ensure the continuous work of the main machine.
Picture Preview:
Video Preview:
Technical Parameters:
| Production Rate | 20 packs/ min |
| Applicable Packaging Specifications: | width：120～400（customizable） height： 90～230（customizable） length：150～500（customizable） |
| Texture of Bags: | Suitable For Manual Sealing & Applicable to Nonwoven Materials |
| Electrical System: | Motion controlled system, touch screen,servo drive (4 axles) |
| Installed Power: | 17 KW |
| Power Requirement: | 380V/50HZ 3*10㎜² 2*6㎜²5-core power cord |
Air Pressure Requirement: | 0.5Mpa |
Machine Weight | 1800Kg |
Machine Dimension (length×width×height) | 2900×3600×2400 |
