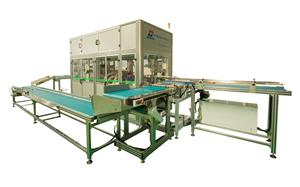

High Speed Semi-auto Baby Pull-Up Pants Packaging Machine
A packaging machine mainly for packing diapers & baby pants products with high-speed & semi-automatic main features. When products being detected by the Packaging Machine, it will undergo procedures such as: automatic compression, stacked-products/pieces pushing, suction and the final stage of bottom gusset folding, heat-sealing and waste clearance procedures.
Mechanical Features：
1. Patent and exclusive sealing and gusset-folding mechanism
the servo controlled gusset-folding mechanism is adaptable to various diapers bagging specifications with precise and uniformed folding
2. Multi-Servo drive and high mechanical stability.
The adoption of Mitsubishi or AB motion-controlled PLC and Bus Servo System ensures the stability and efficiency of production, with the qualified rate reaching as high as 99%.
3. One-press shunt function.
When the machine is in the process of changing task or in a state of malfunction, the products will be diverted through manual sealing line with the one-press shunt system to ensure the continuous work of the main machine.
4. Self diagnosis alarm.
When the device itself malfunctions or abnormalities occur on the packaging, the device will issue a corresponding alarm
Picture Preview：
Video Preview:
Technical Parameters:
| Production Rate | 35 packs/min |
| Applicable Packaging Specifications: | width：120～400（customizable） height： 90～230（customizable） length：150～500（customizable） |
| Texture of Bags: | Suitable For Manual Sealing & Applicable to Nonwoven Materials |
| Electrical System: | Motion controlled system, touch screen,servo drive (9 axles) |
| Installed Power: | 22.5 KW |
| Power Requirement: | 380V/50HZ 3*10㎜² 2*6㎜²5-core power cord |
Air Pressure Requirement: | 0.5Mpa |
Machine Weight | 2000Kg |
Machine Dimension (length×width×height) | 3300×1900×2400 |
