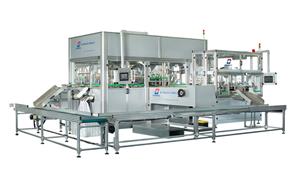

Fully-Automatic Disposable Underpads Bagging Machine
This machine, under automated operation, will have the diapers stacked neatly by the Stacker according to diapers quantity/ piece number of the packaging followed by pushing into the compressing platform of the Packaging Machine. When products being detected by the Packaging Machine, it will undergo procedures such as: automatic compression, stacked-products/pieces pushing, bag feeding, suction, bag-opening, product bagging.
Mechanical Features:
1. Patented technology
the servo controlled gusset-folding mechanism is adaptable to various underpads bagging specifications with precise and uniformed folding
2. Utilization of servo-technoloy with high mechanical stability.
The utilization of Mitsubishi or AB motion-controlled PLC and Bus Servo System enabling higher stability and efficiency of production, with the qualified rate reaching as high as 99%.
3. Overall program planning.
When the underpads bagging machine is in the process of changing task or in a malfunctioning state, it can one-click switch to output diapers from another outlet of the stacker , products will be diverted through manual sealing line to ensure the continuous work of the main machine.
4. HMI (Human-machine interaction) system usage.
Various product parameters can be preserved and saved in the machine and enabling direct usage and modification on the technical parameters when needed.
Picture Preview:
Technical Parameters:
Production Rate | 50 packs/min |
Applicable Packaging Specifications: | width:120~400(customizable) height: 90~250(customizable) length:150~500(customizable) |
Texture of Bags: | Suitable For Manual Sealing & Applicable to Nonwoven Materials |
Electrical System: | Motion controlled system, touch screen,servo drive (11axles) |
Installed Power: | 25 KW |
Power Requirement: | 380V/50HZ 10㎜²5-core power cord |
Air Pressure Requirement: | 0.5Mpa |
Machine Weight | 2000Kg |
Machine Dimension (length×width×height) | 3550×3500×2540 |
