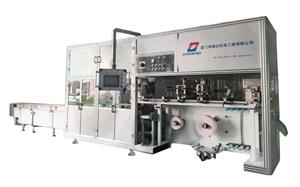

High-Speed Fully-Auto Sanitary Napkins Stacking Machine
A sanitary napkin packaging machine with high-speed & semi-automatic main features. When products being detected by the Packaging Machine, it will undergo procedures such as: product catching, compression, bag opening and bag filling procedures and then clear the cut off. These sealed products would be delivered out along the conveyor belt.
Mechanical Features:
1. Adopts a new modular design concept, full servo design
Multi-cam linkage servo control technology to ensure that all action is kept to the smoothest and shortest time required. The packing speed can reach up to 60 packs / minute which is at the fastest industrial production speed.
2. Overall program planning.
The engineering solutions offered by BROAD are not just simple sanitary napkin packing machines, but also a holistic solution from selection of product pieces from host, conveying products into the packaging machines to sealing of the packaging executed by the machine. The finished products will appear as a two-in-one (packaged) product after being packed.
4. Human Machine Interface (HMI) system
The control panel of the Stacking Machine will visually display data and different parameters settings of different product specifications which can be preserved and saved in the machine and retrieved conveniently when needed.
Picture Preview:
Technical Parameters:
Production Rate | 60 packs/min |
Applicable Packaging Specifications: | width:60~110(customizable) height: 30~90(customizable) length:80~150(customizable) |
Texture of Bags: | PE, Composite film bag, Aluminium film bag |
Electrical System: | motion controlled system, touch screen,servo drive ( 11axles) |
Installed Power: | 16 KW |
Power Requirement: | 380V/50HZ 10㎜²5-core power cord |
Air Pressure Requirement: | 0.5Mpa |
Machine Weight: | 4000Kg |
Machine Dimension (length×width×height) | 7200×1700×2200 |
